Din lift to lock - 72mm c/c - backset 60mm

ZOO ZDL7260LL – Lift-to-Lock DIN Bathroom Lock (60 mm Backset, 72 mm Centres)

The ZOO ZDL7260LL is a purpose-engineered DIN-standard lift-to-lock bathroom lockcase designed for accessible toilet and washroom doors where intuitive, secure privacy operation is required. Manufactured to precision standards with durable materials and functional detailing, this lockcase is ideal for commercial, public, healthcare, and residential facilities requiring robust, reliable door locking with straightforward operation.

Key Features & Operation

• Lift-to-lock mechanism: Provides simple, intuitive privacy locking — lift the internal handle to extend the deadbolt and secure the door, then press down to release both deadbolt and latch for egress.

• 72 mm centre distance: Standard DIN spacing between spindle and follower for compatibility with DIN lever furniture sets.

• 60 mm backset: Suitable for common door preparations and DIN lock installations.

• Adjustable roller latch bolt: Smooth latch engagement that accommodates variation in frame strike alignment.

Dimensions & Construction

• Case size: 90 mm (width) × 165 mm (height) for 60 mm backset applications.

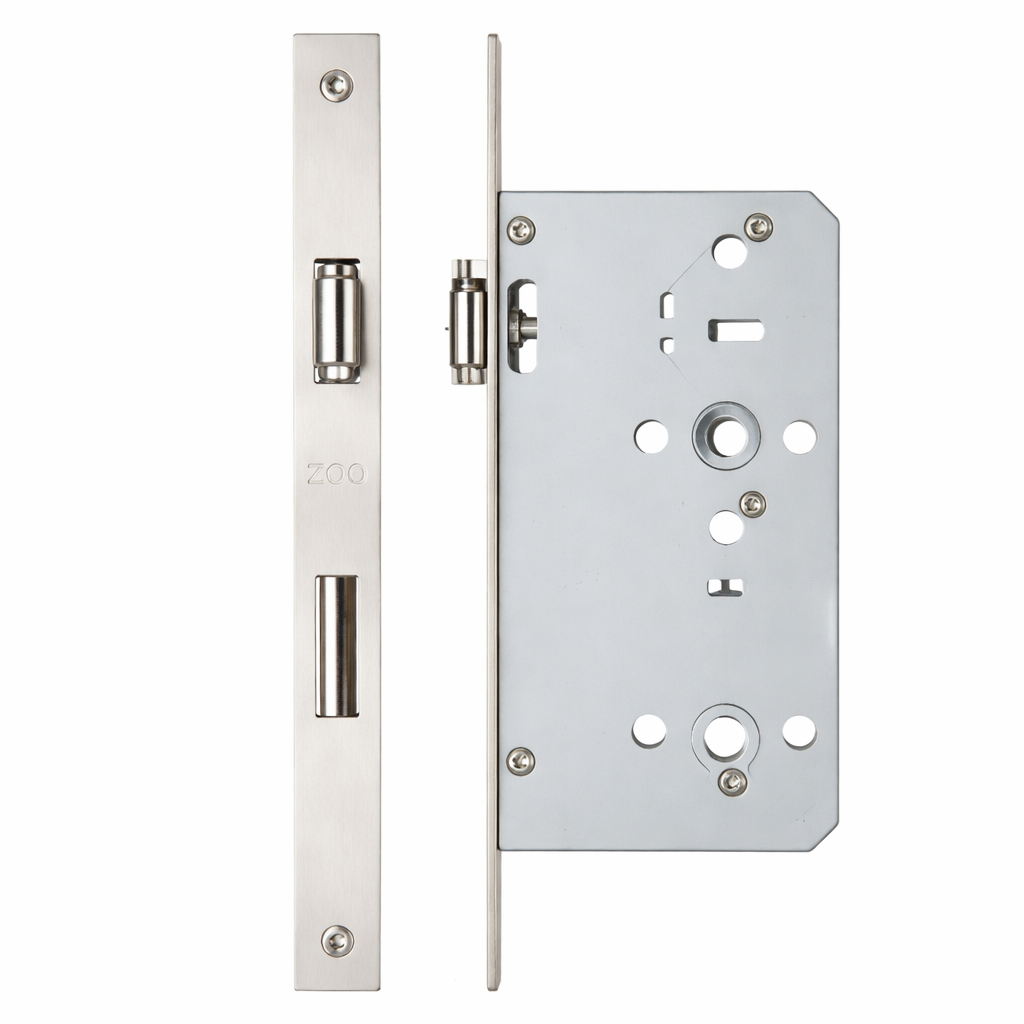

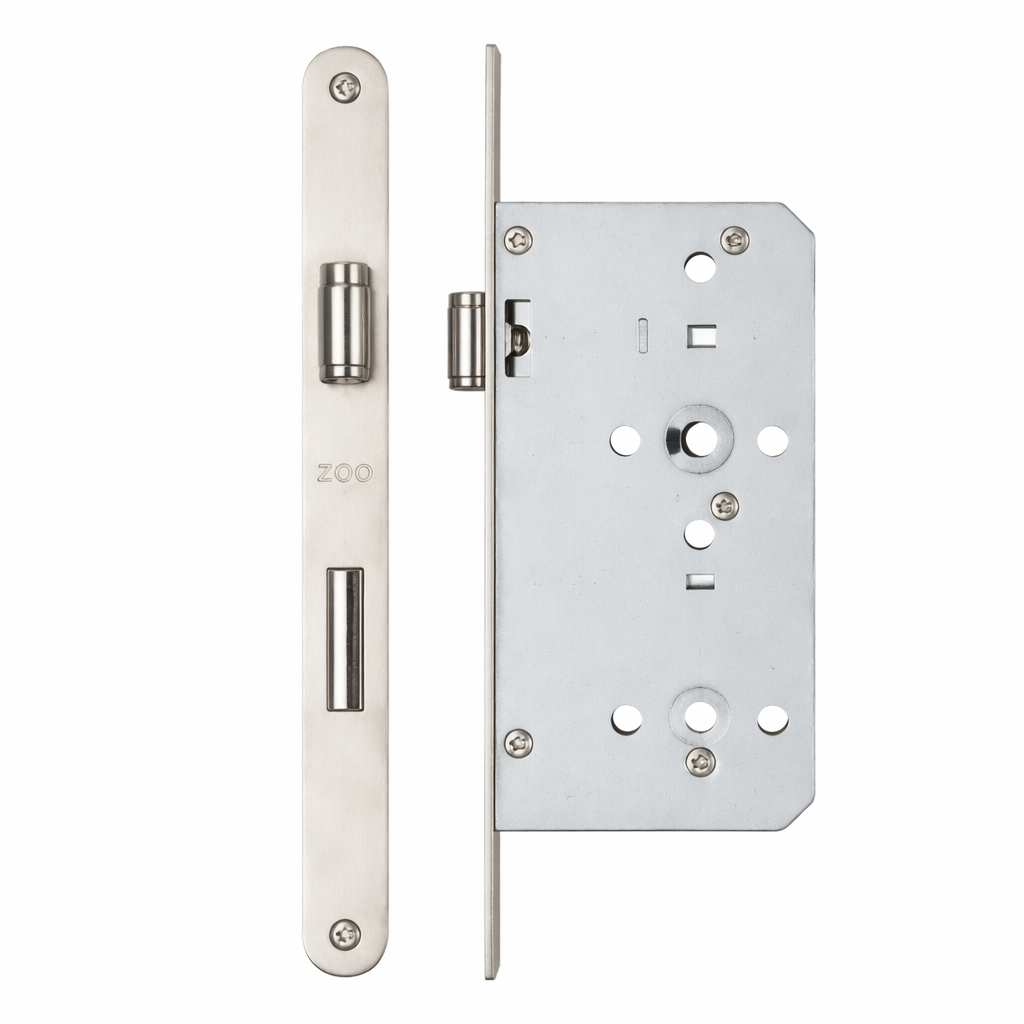

• Forend plate: 235 mm × 22 mm × 3 mm stainless steel, available in square or radius profile options to suit architectural styles.

• Latch bolt projection: Approx. 12.5 mm.

• Deadbolt projection: Approx. 20.5 mm.

• Follower size: Configured for standard lever operation.

Materials & Finish Options

The lockcase and associated components are manufactured from Grade 304 stainless steel, providing excellent corrosion resistance and long-term durability. It is available in multiple finishes to suit design preferences, including:

• Satin Stainless Steel (ZDL7260LLSS)

• Powder-coat Black (ZDL7260LL-PCB)

• Powder-coat White (ZDL7260LL-PCW)

• PVD Satin Brass (ZDL7260LL-PVDSB)

• PVD Satin Bronze (ZDL7260LL-PVDBZ)

Supplied Components & Accessories

• Includes integrated grip-tight follower for secure lever engagement and reduced handle play.

• Complete with anti-rattle strike and dust box to minimise noise and improve fit at the frame.

• Often paired with ZOO ZCS030LL lift-to-lock return-to-door lever handles and a “Lift Handle to Lock” indicator escutcheon for full bathroom lockset functionality.

Standards & Performance

• BS EN 12209:2003 Grade 3: Tested for mechanical robustness and performance suitable for general door security usage.

• 10-year mechanical guarantee: Factory QC tested for long-term reliability.

• When used with compliant handles and fire seals, this lock can be integrated into fire-door assemblies where required.

Operation & Application

The ZDL7260LL operates externally like a standard DIN bathroom lock, engaging and releasing the latch bolt via a lever set that activates the roller latch smoothly. Internally, a dedicated handle mechanism controls both the roller latch and deadbolt — lifting to lock and downward motion to release and exit.

This lockcase is especially suited to accessible toilets, washrooms, and other doors requiring both privacy locking and compliance with BS 8300 ergonomic design guidance when paired with appropriate lever sets.
