Abus 65 Series Brass Body Padlock Range

ABUS 65 Series Brass Body Padlock

The ABUS 65 Series Brass Padlock is a durable and versatile security solution designed for everyday locking applications across residential, commercial, and industrial environments. Manufactured by ABUS, a globally recognised leader in security technology, the 65 Series combines a solid brass lock body with a hardened steel shackle to deliver reliable protection, corrosion resistance, and long service life.

The precision-engineered brass body provides excellent resistance to corrosion, making these padlocks suitable for both indoor and outdoor applications. The hardened steel shackle offers increased resistance against cutting and sawing, while the ABUS precision pin cylinder ensures smooth operation and dependable key control.

The ABUS 65 Series is available in multiple sizes to suit a wide range of security requirements, with both standard and long shackle variants available for greater flexibility where additional clearance is required.

Technical Specifications

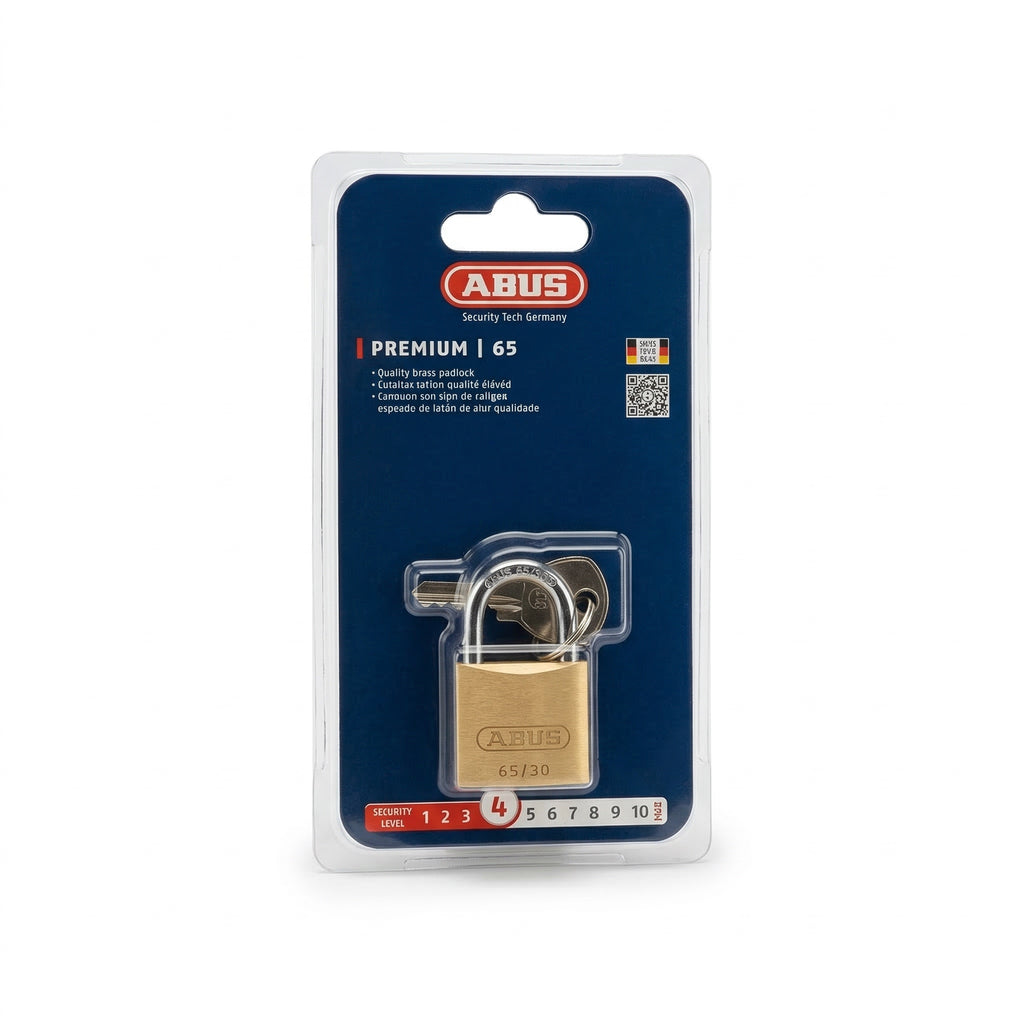

30mm Padlock – ABUS 65/30

• Body Width: 30mm
• Shackle Diameter: 5mm
• Vertical Shackle Clearance: 17mm
• Horizontal Shackle Clearance: 16mm
• Material: Solid brass body with hardened steel shackle
• Keying: Precision pin tumbler cylinder
• Applications: Lockers, toolboxes, cabinets, luggage, small gates

Long Shackle Option:
ABUS 65/30HB

• Shackle Clearance: approx. 50mm

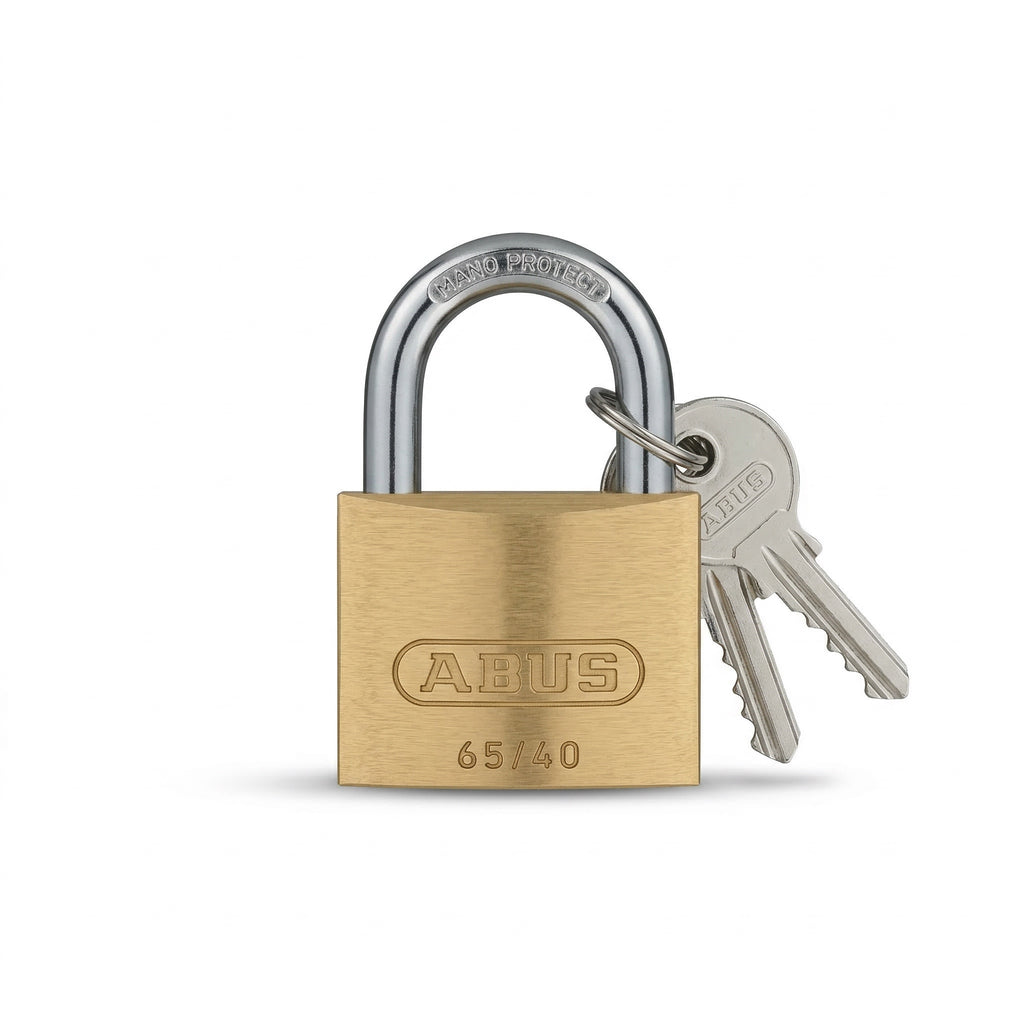

40mm Padlock – ABUS 65/40

• Body Width: 40mm
• Shackle Diameter: 6.5mm
• Vertical Shackle Clearance: 22.5mm
• Horizontal Shackle Clearance: 22mm
• Material: Solid brass body with hardened steel shackle
• Applications: Gates, sheds, storage boxes, lockers, workshop equipment

Long Shackle Option:
ABUS 65/40HB

• Shackle Clearance: approx. 63mm

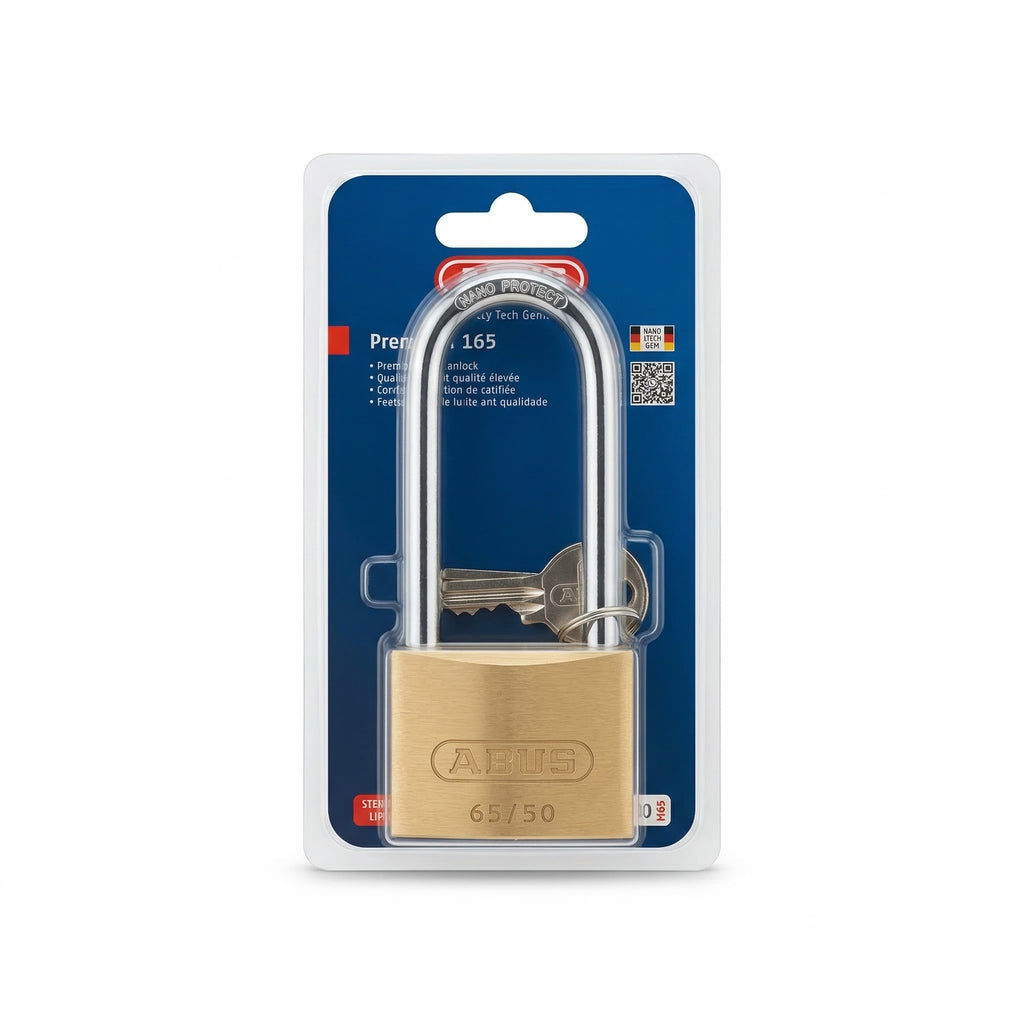

50mm Padlock – ABUS 65/50

• Body Width: 50mm
• Shackle Diameter: 8mm
• Vertical Shackle Clearance: 29mm
• Horizontal Shackle Clearance: 28mm
• Material: Solid brass body with hardened steel shackle
• Applications: Garage doors, gates, industrial lockers, tool storage

Long Shackle Option:
ABUS 65/50HB

• Shackle Clearance: approx. 80mm

60mm Padlock – ABUS 65/60

• Body Width: 60mm
• Shackle Diameter: 9mm
• Vertical Shackle Clearance: 34mm
• Horizontal Shackle Clearance: 35mm
• Material: Solid brass body with hardened steel shackle
• Applications: Warehouse doors, large gates, commercial storage units

Key Features

• Solid brass lock body for corrosion resistance and durability
• Hardened steel shackle for increased cut resistance
• Precision pin cylinder for smooth operation and security
• Available in standard and long shackle versions
• Suitable for indoor and outdoor applications
• Manufactured to ABUS high-quality security standards

Typical Applications

• Gates and sheds
• Toolboxes and storage cabinets
• Lockers and workshops
• Industrial equipment
• Outdoor security applications
